MEASURED IN THE SHOP. MODELED TO FIT.

3D scanning, reverse engineering, clearance validation and technical design for classic and custom vehicles—developed in Corrales for buildable, shop-ready results.

START YOUR ENGINEERING PROJECT

PHYSICAL VEHICLE. DIGITAL MASTER. BUILDABLE PART.

Every model starts with measurements, scan data and the part’s real job. We clean the data, establish critical datums, model mounting features, check clearances and travel, then produce the drawings or files needed for machining, fabrication and installation.

CAPTURE & REVERSE ENGINEERING
3D scanning and dimensional data capture support reverse engineering from parts, bodies and chassis.

MODELING & FITMENT STUDIES
Datum-based CAD modeling and fitment validation cover chassis, bracket and component design, plus suspension travel, steering and tire-envelope studies.

MANUFACTURING & DOCUMENTATION
Manufacturable drawings, cut files and models are supported by technical assembly documentation and revision control.

DATA TO INSTALLED COMPONENT.

01 / 06

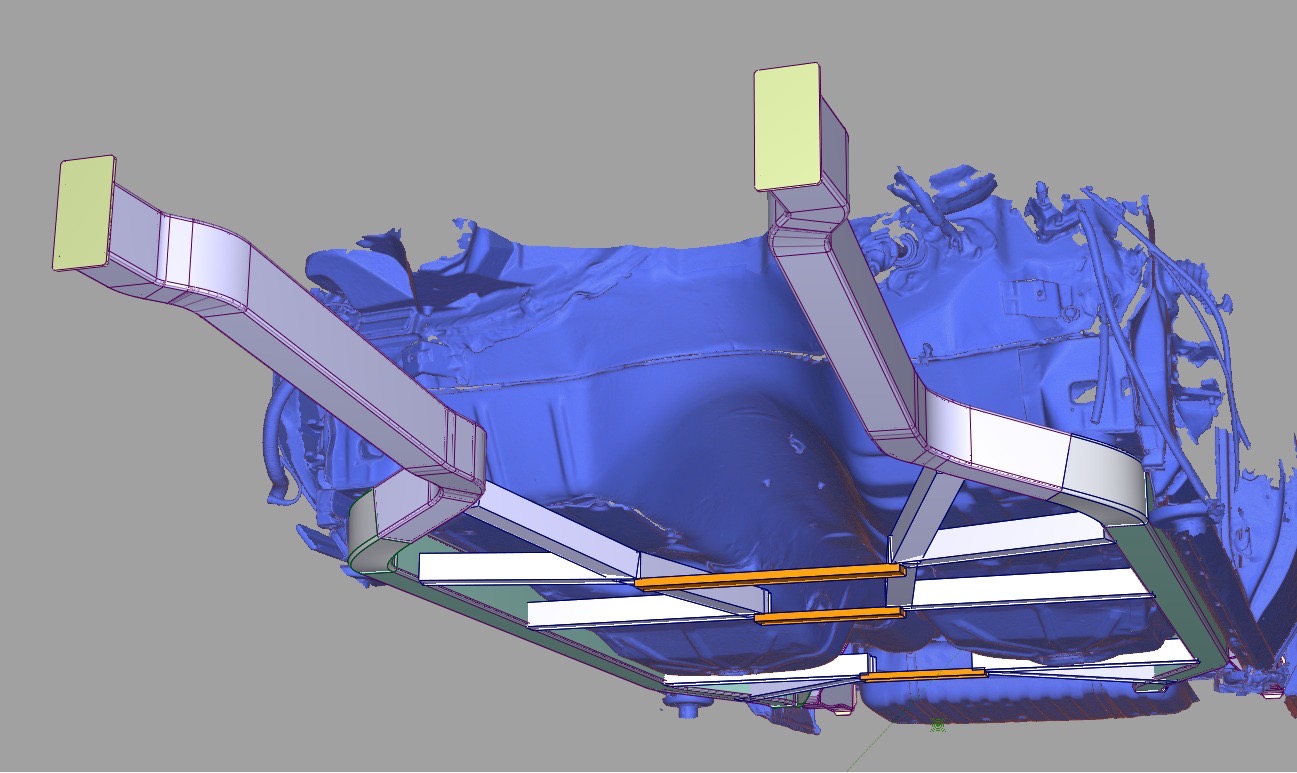

Vehicle Data Capture & CAD Setup

Vehicle measurements and scan data are organized around stable datums before chassis, suspension and component geometry are modeled.
